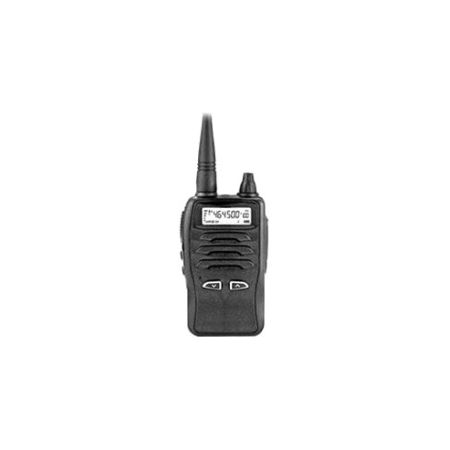

Motorola P324 - Giant OLYMPIA Two Way Radio Item # 993213

 |
Motorola P324 - Giant OLYMPIA Two Way Radio
$ 100 .99 / each $100.99
Add a Protection Plan (optional)  Learn More
Includes Coverage For Accidental Drops & Spills
In Stock
Free delivery
Estimated delivery 3-5 business days

    Description

    The Olympia P324 two way radio is the benchmark for business radios. This Olympia UHF radio offers the option of selecting between 4 watts or 1 watt and support for up to 32 channels. These professional radios offer a great value, providing the same performance level of radios selling for over twice the price.The Olympia P324 two way radio supports 133 private line codes (50 CTCSS, 83 CDCSS). Other features include a battery saver function along with an audible low battery alert and a time-out timer to help prevent accidental transmissions. It is a fully programmable radio, but comes pre-programmed with 10 channels set to standard frequencies.

    Back To Top

    Product Details

    Item # 993213
    OfficeMax # 24613544
    Manufacturer # Q19899
    brand name Motorola
    Privacy Codes 133CTCSS/CDCSS
    height 4.5 in
    Total Radio Channels 42
    Call Alerts Tone; Roger Beep
    width 2.4 in
    Display LCD - Backlit
    depth 1.5 in
    Product Name P324 - Giant OLYMPIA Two Way Radio
    Built-in Speaker Yes
    Channel Spacing 12.5 kHz
    manufacturer Motorola Solutions, Inc.
    Frequency Range 450 - 470 MHz
    Back To Top

      Customer Reviews

      Back To Top

      From the Manufacturer|Powered by Webcollage

      Thank You Is the information in this section helpful? Yes / No

      Olympia P324 Professional Radio

      Affordable, Simple and Reliable Performance,

      Setting pace with affordable, simple and reliable performance, the P324 is the new benchmark for business. With features like 4W or 1W selectable output power, a backlit LCD, priority scan, emergency/hands-free key and a lithium ion battery, the P324 is the must-have communication tool. The distinctively ergonomic form ensures it is handy to hold and operate, and makes the unit compact enough to be carried with ease.

      Olympia Professional Radio - P324
      Olympia Professional Radio - P324 PTT Earbud

      • TX Output power selectable: 4 W or 1 W
      • 32 programmable channel memories for separate RX and TX frequency, TX Power, separate
      • RX and TX CT/CDCSS value and lock out
      • 133 codes including 50 CTCSS and 83 CDCSS values
      • 12.5kHz channel bandwidth compatible
      • Backlit LCD display
      • Battery meter
      • Audible low battery alert
      • Programmable TX time out timer (30 sec–5 min)

      • Emergency/Hands-free key

      • Keypad lock

      • Keypad tone

      • Battery save/Power save

      • Talk confirmation tone/Roger beep

      • Adjust squelch Level (1–5)

      • Monitor function

      • Busy channel lock out

      • All channels scan and priority scan function

      • 10 Pre-programmed channels

      • Battery type: 7.4V 1100mAH Li-ion

      • Ingress Protection: IP52

      Olympia Professional Radio Specs - P324

      GENERAL SPECIFICATIONS

      Frequency Band450-470 MHz
      Channel BW12.5 kHz
      LCD

      13 Icons
      8 digit Frequency LCD display
      3 digit CTCSS value LCD display
      4 level RX strength indicator
      5 level SQ indicator
      3 level BAT indicatorBack light

      Battery Type7.4V 1100mAh Li-ion
      CTCSS/CDCSS Codes50/83
      Antenna ConnectorSMA top mount
      Headset / Microphone ConnectorDual 3.5 mm / 2.5 mm
      Battery ConnectorBottom Charging Contacts
      Controls2 front mount buttons (up/down)
      3 side buttons (PTT, Scan, Monitor)
      1 top button (Emergency)
      1 top rotary control (Volume, Power)
      Power SwitchRotary Knob
      Channel Capacity
      		32
      Charger
      		Drop-In Type
      Power Supply
      		100-240V 50/60 Hz 0.2A
      Dimensions (without antenna)
      		1.5 x 2.4 x 4.5 inches (38 x 62 x 114 mm)
      Weight (with battery pack)
      		7.9 oz (224 g)
      Frequency Stability vs. Temperature
      		<2.5ppm

      Estimated Battery life (TX-RX-STBY duty cycle)

      Power

      10-10-80 duty cycle

      5-5-90 duty cycle

      1 Watt

      8hrs.

      16hrs.

      4 Watt

      5hrs.

      9hrs.



      FCC ID: K7GP1808



      RECEIVER SPECIFICATIONS


      Sensitivity (12 dB SINAD)

      0.28uV

      Adjacent Channel Selectivity

      60dB

      Intermodulation

      60dB

      Spurious Rejection

      70dB

      Image Rejection

      70dB

      Audio Output Power

      500mW

      Audio Distortion

      5% @ Rated output





      TRANSMITTER SPECIFICATIONS

      TX Output Power

      4W/1W

      Modulation Designator

      12.5 kHz BW

      Spurious Output

      6K12F3E

      Per 90.210 (d)

      FM Hum and Noise

      40dB

      Adjacent Channel Power Ratio

      60dB

      Modulated Audio Distortion

      _5% @ Rated Deviation

      ENVIRONMENTAL SPECIFICATIONS


      Ingress Protection Rating

      Operating Temperature

      Storage Temperature

      lP52

      - 20° C – +60° C / -5° F – +140° F

      -40° C – +65° C / -40° F – +150° F


      ACCELERATED LIFE TEST

      Giant International’s accelerated life testing simulates years of eld use to show our commitment to quality and reliability. Olympia radios have been designed and manufactured to minimize repairs and downtime.

      PACKAGING SPECIFICATIONS

      Unit Package Dimensions

      9.53(L) x 9.37(W) x 2.6(H) inches

      Unit Package Weight

      1.32 lbs (0.600Kg)

      Units per Carton

      4 sets

      Carton Dimensions

      10.9(L) x10.2(W) x14.4(H) inches

      Carton Weight

      6.30 lbs (2.858Kg)

      UPC code

      8 43677 00069 6

      UCC code

      10 8 43677 00069 3

      PACKAGE CONTENTS:

      Radio, lithium-ion battery, belt clip,antenna, charging adaptor, chargingbase, User Manual
